Wilco Offroad

Hitchswing Lite

Hitchswing Lite

SKU:HS81000

Regular price $479.00
Regular price Sale price $479.00
Sale Sold out
Shipping calculated at checkout.
Quantity

ESTIMATE SHIPPING & DELIVERY

Shipping rates are estimates. Final shipping and tax calculated at checkout.

We're excited to announce that the all-new Hitchswing Lite is now available.

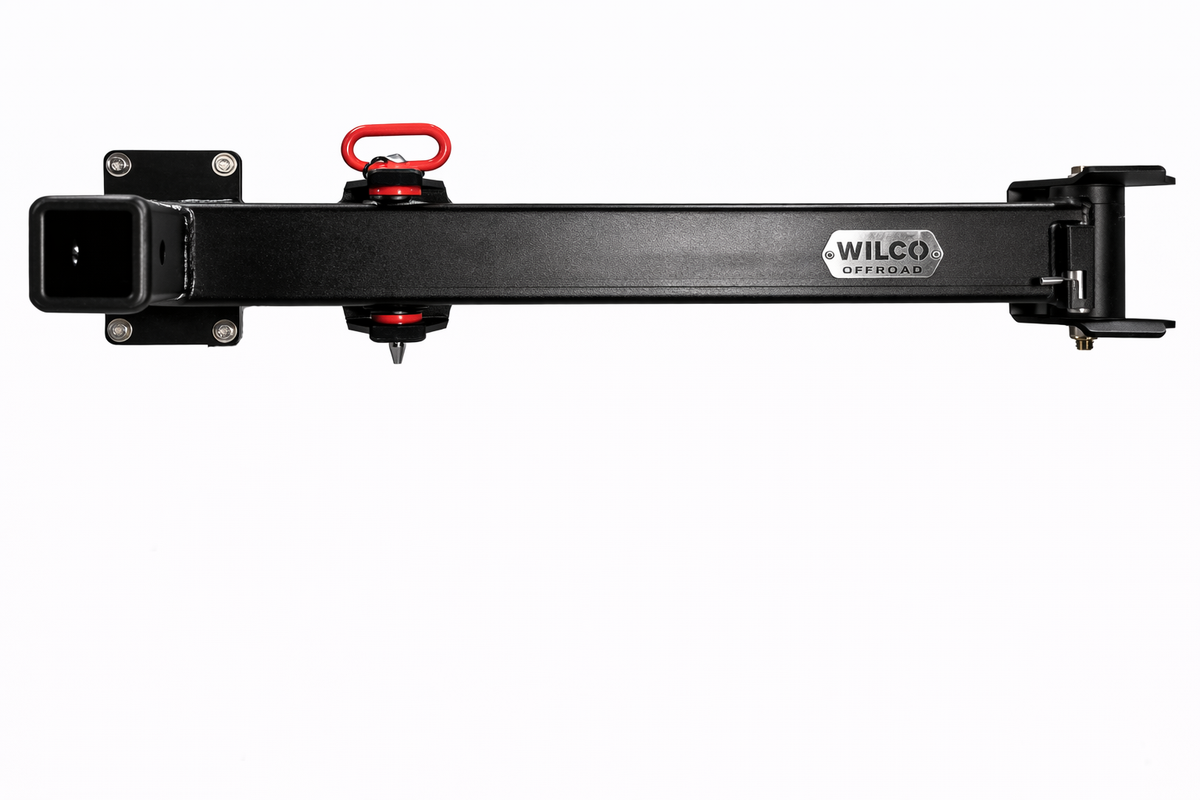

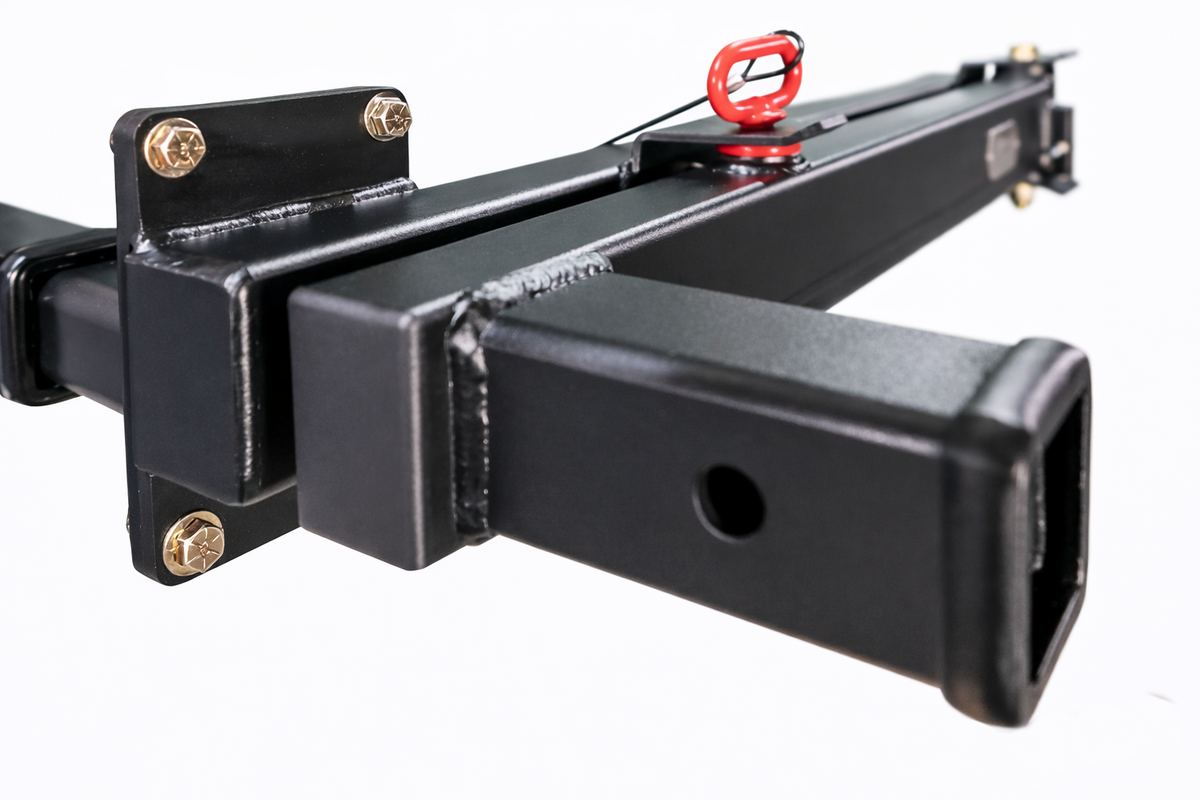

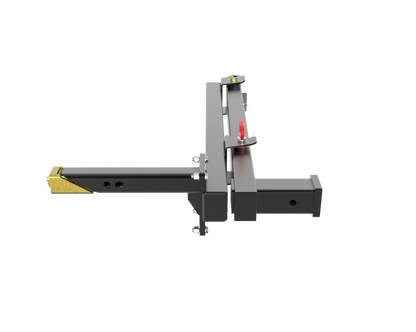

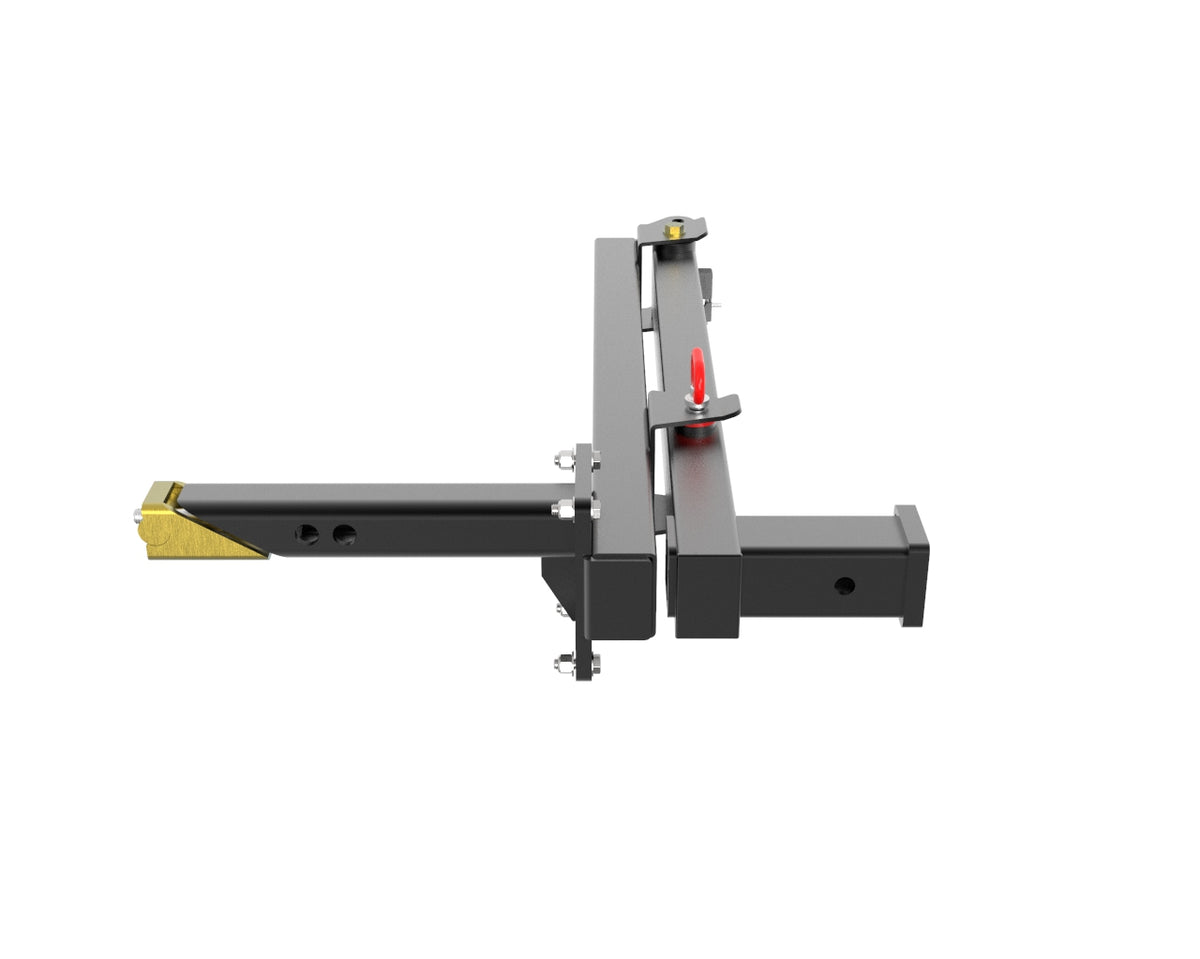

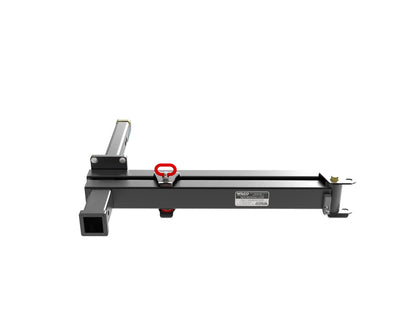

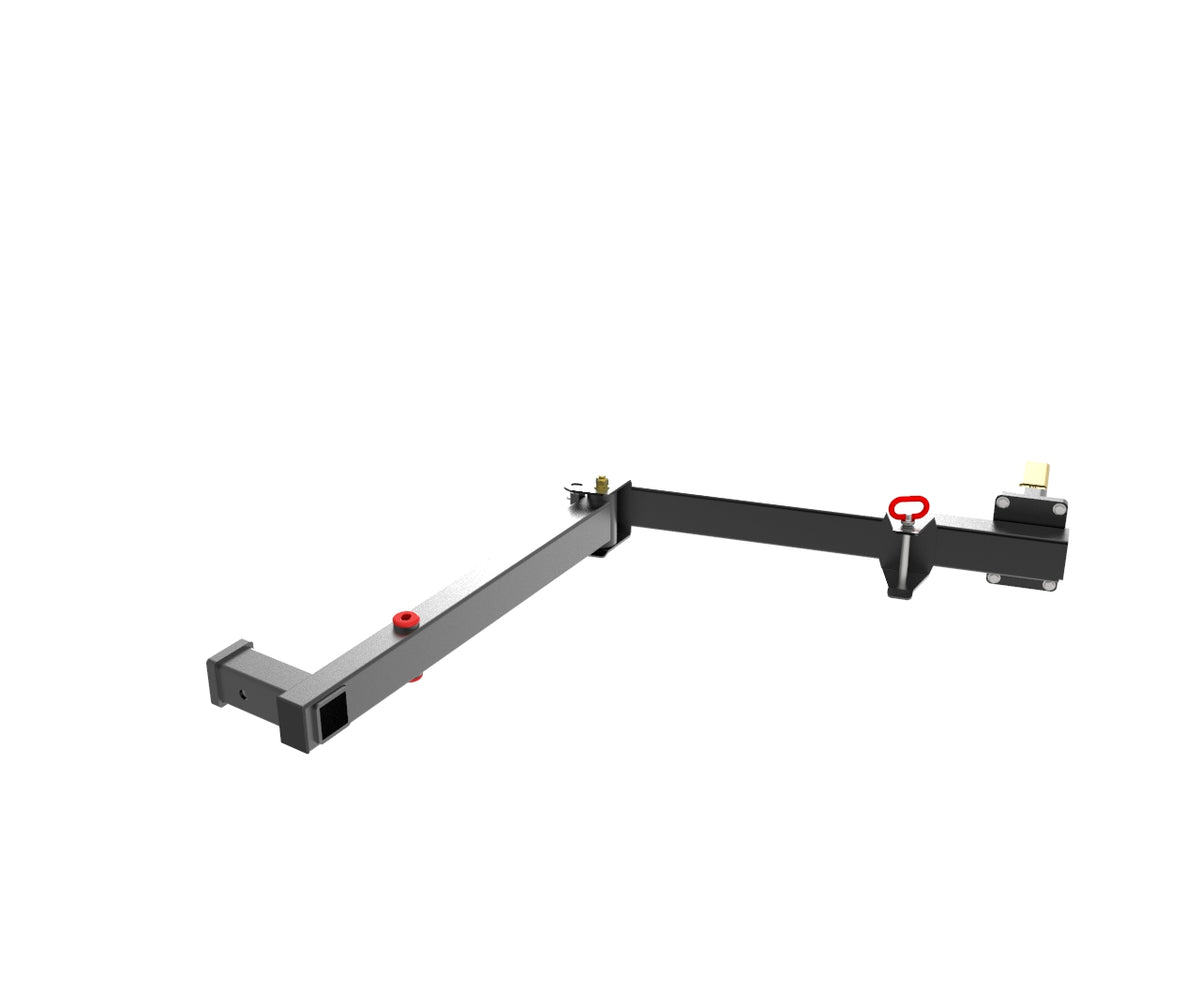

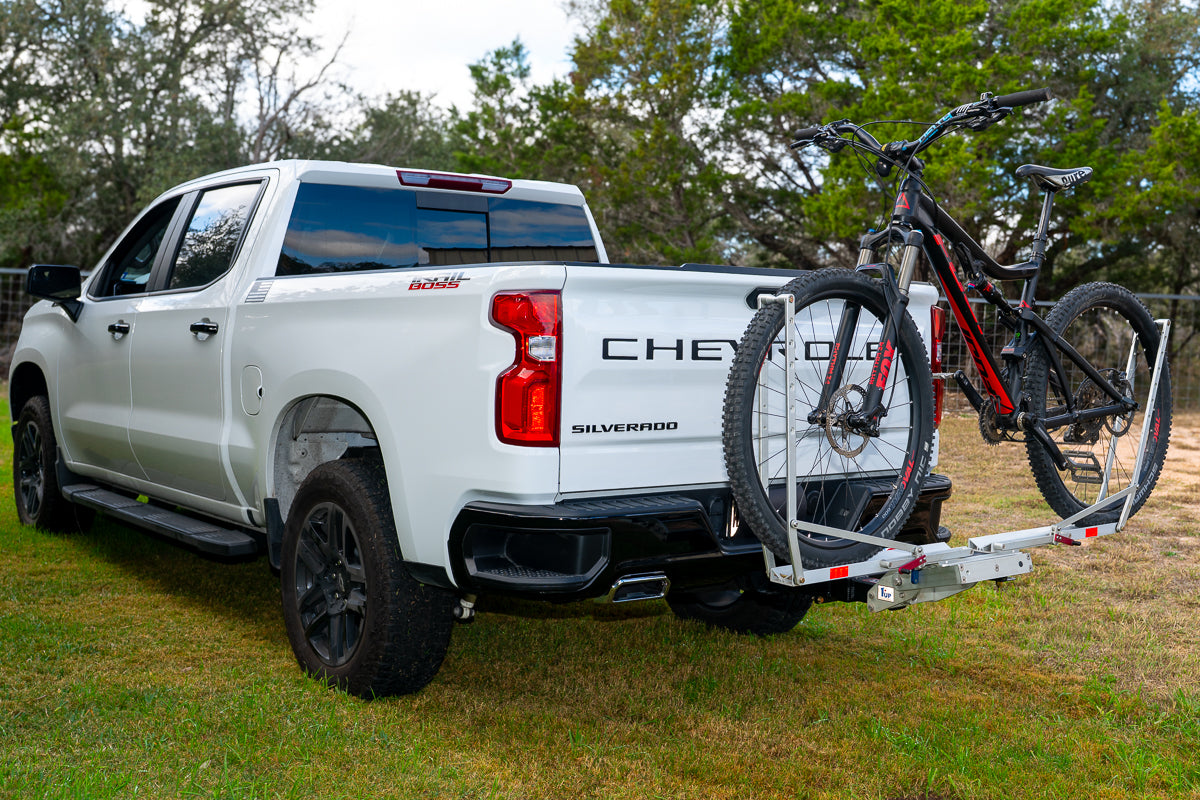

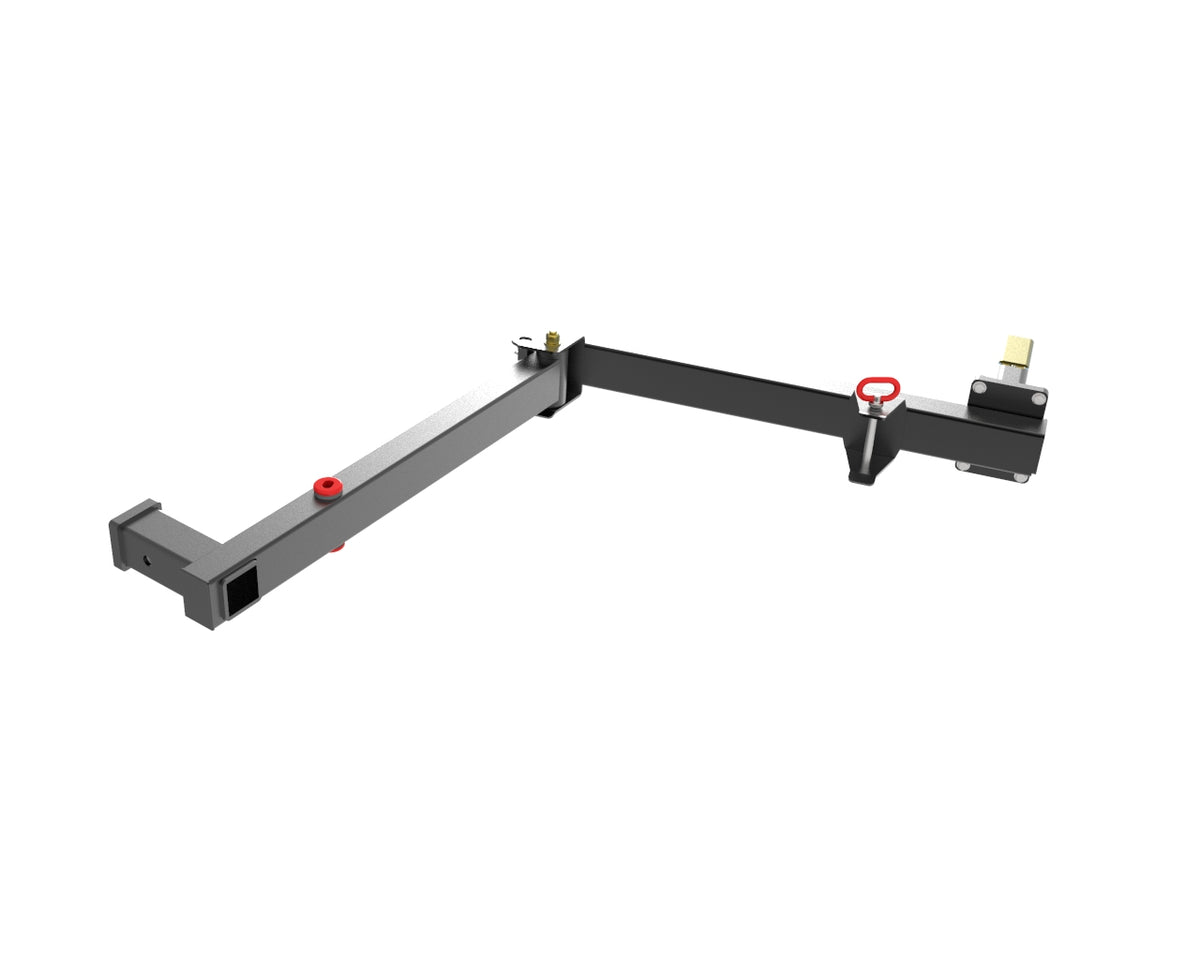

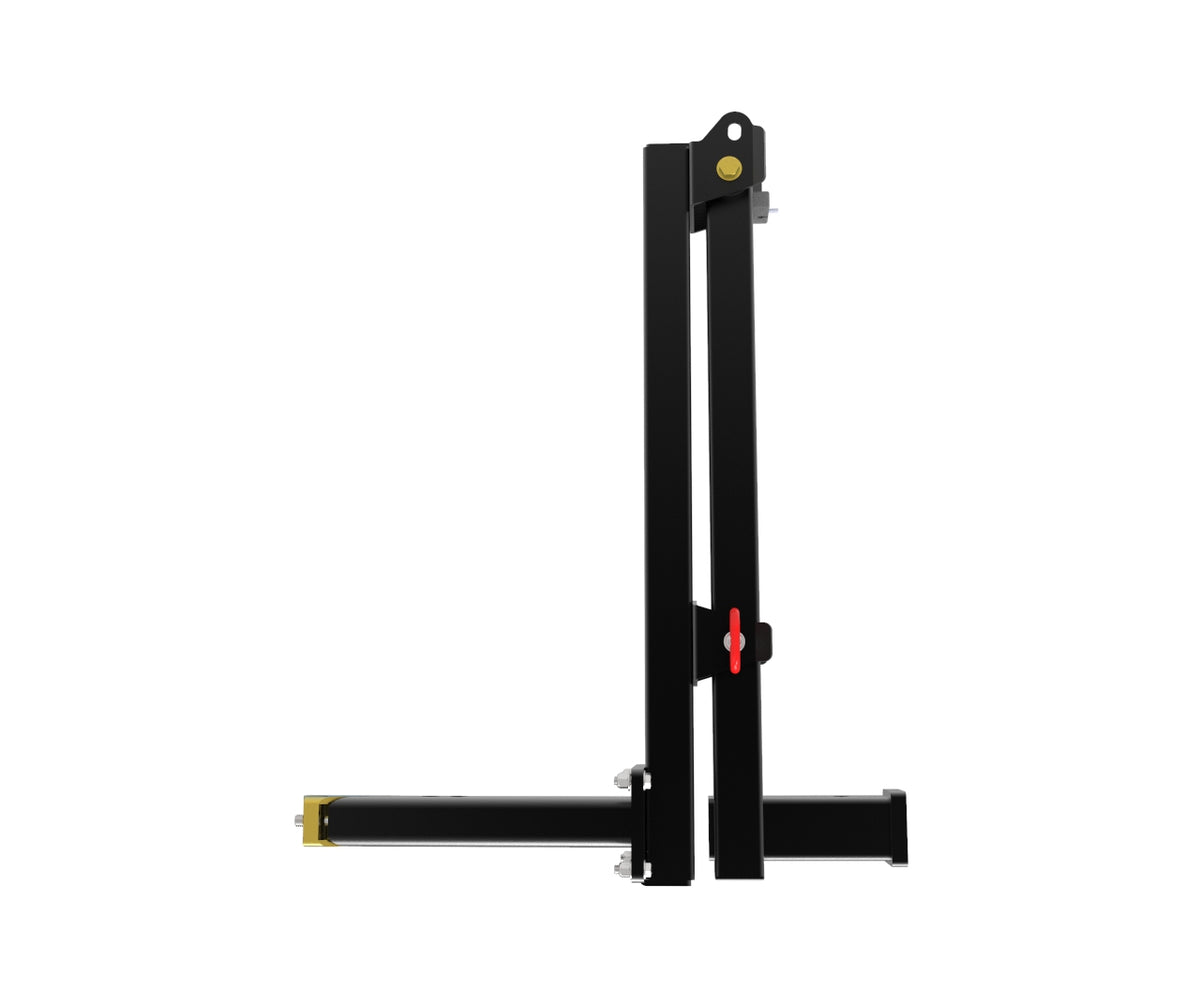

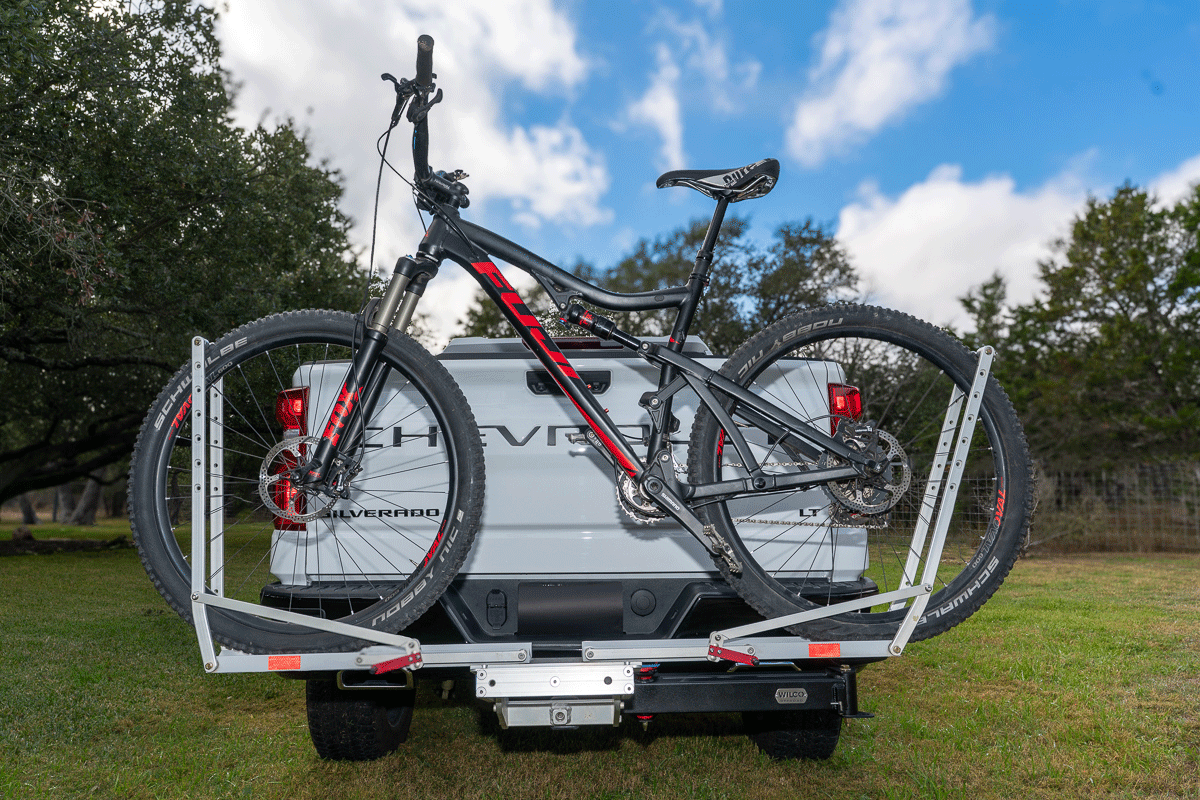

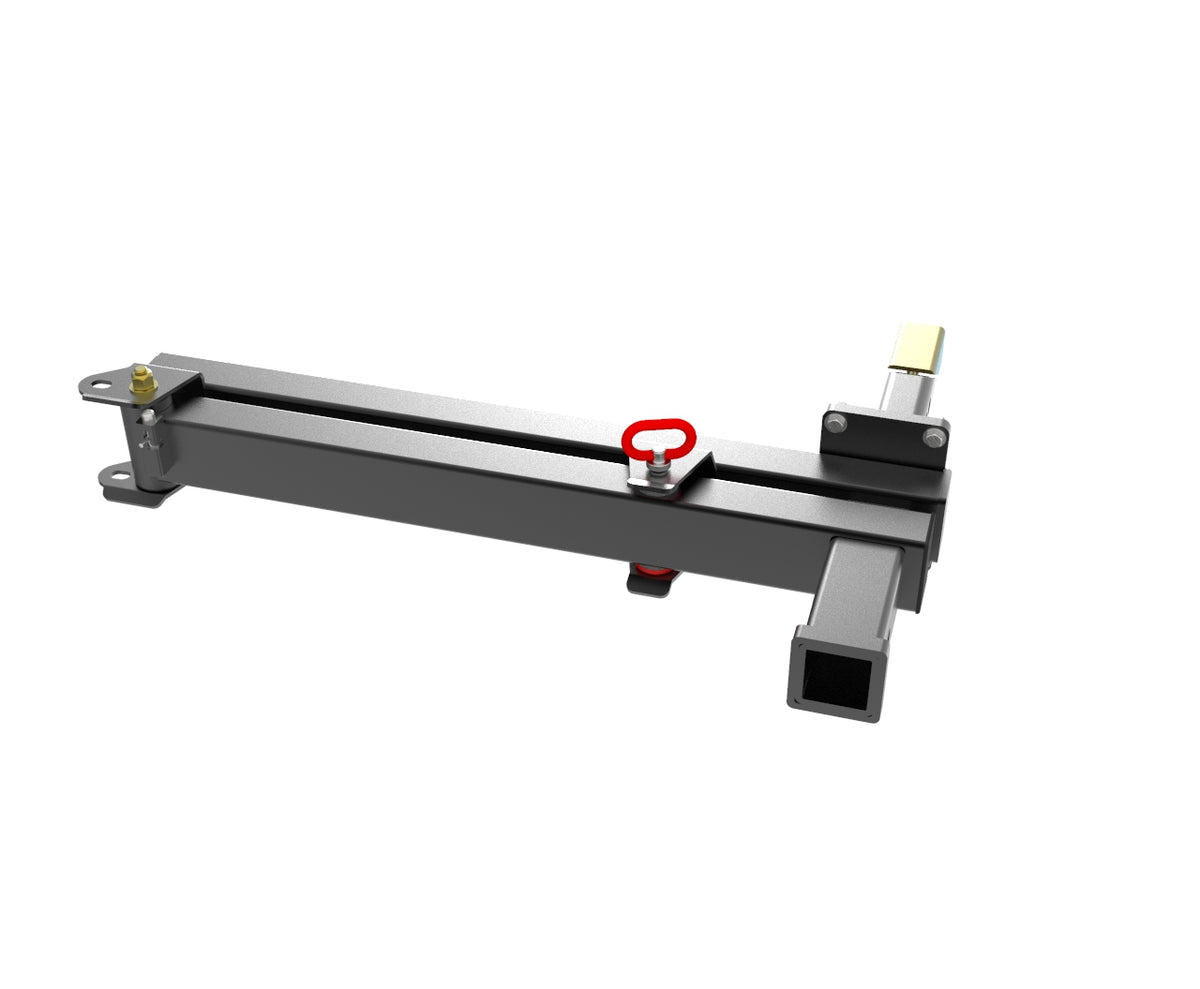

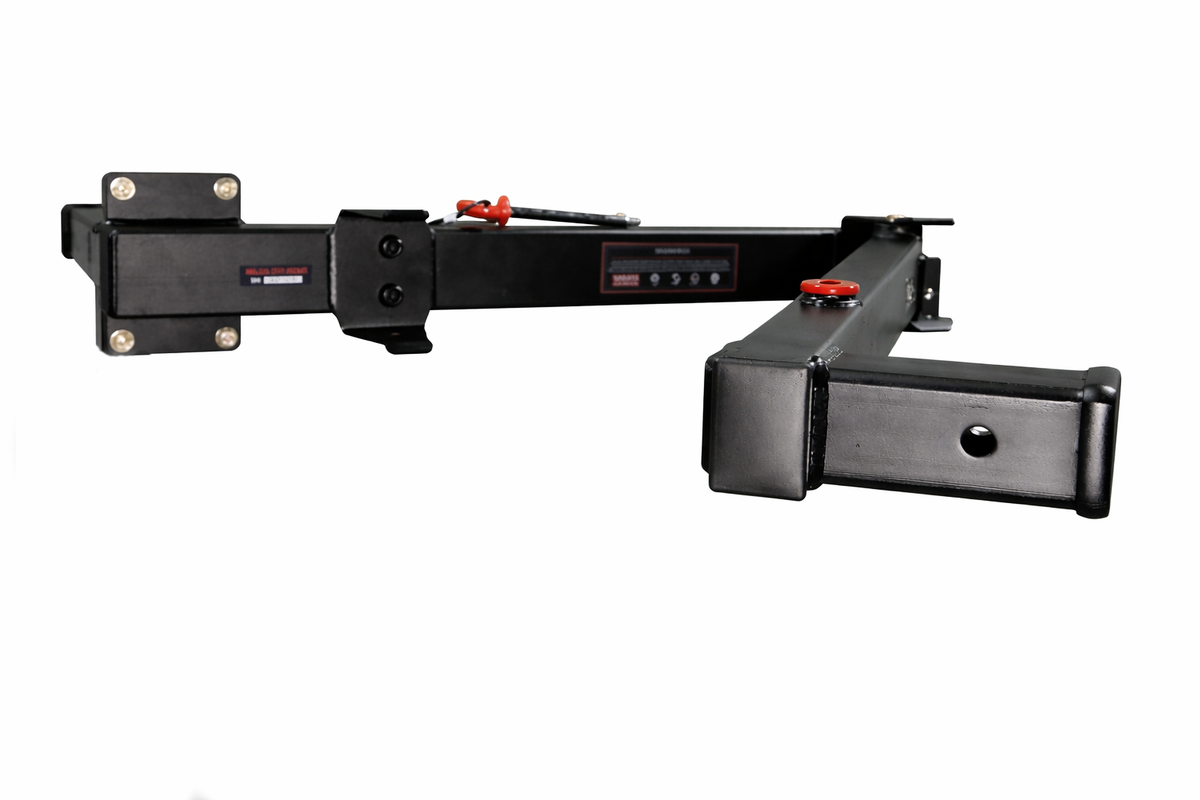

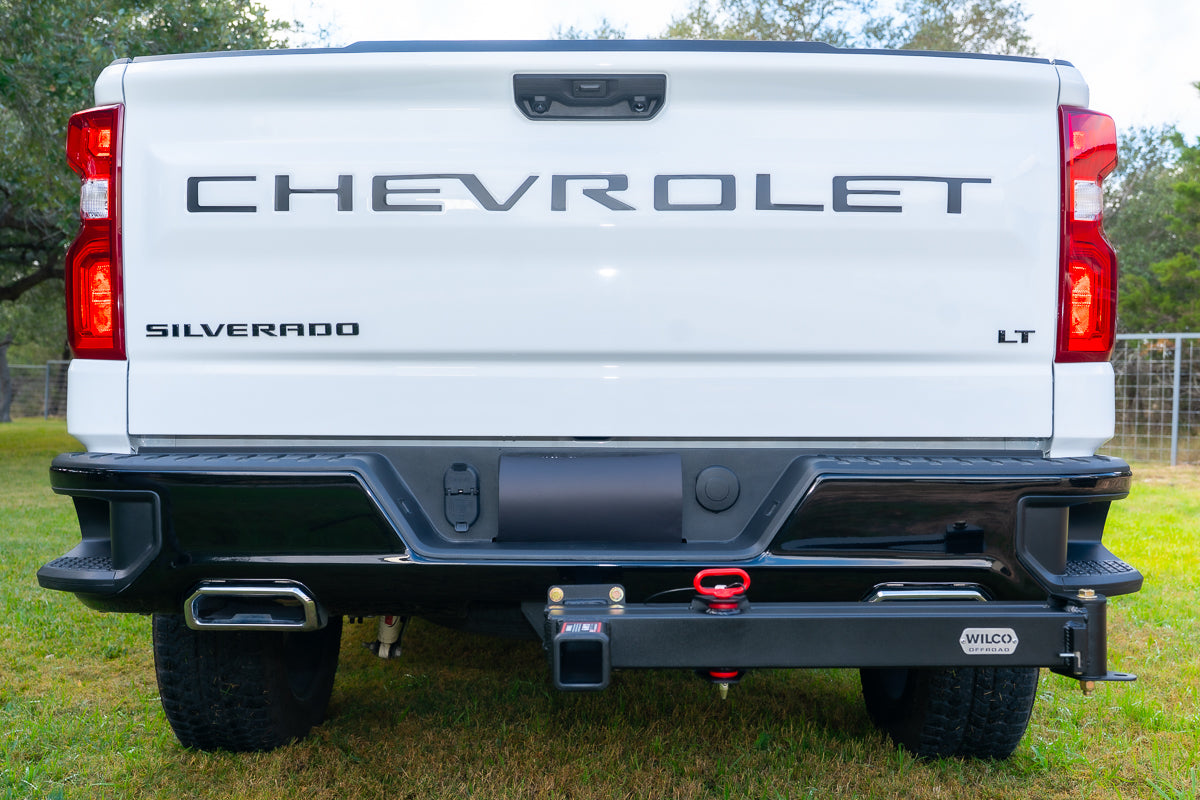

The Hitchswing Lite is designed to be the lightest, most affordable, and strongest swing-away cargo carrier on the market. It allows you to easily carry any bike rack, cargo basket, or anything that mounts to a 2" hitch receiver. To access the back of your vehicle, simply pull the locking pin and swing your cargo out of the way. This light weight new design is reversible and can be mounted to either swing open to the passenger side or the driver side.

Standard Features:

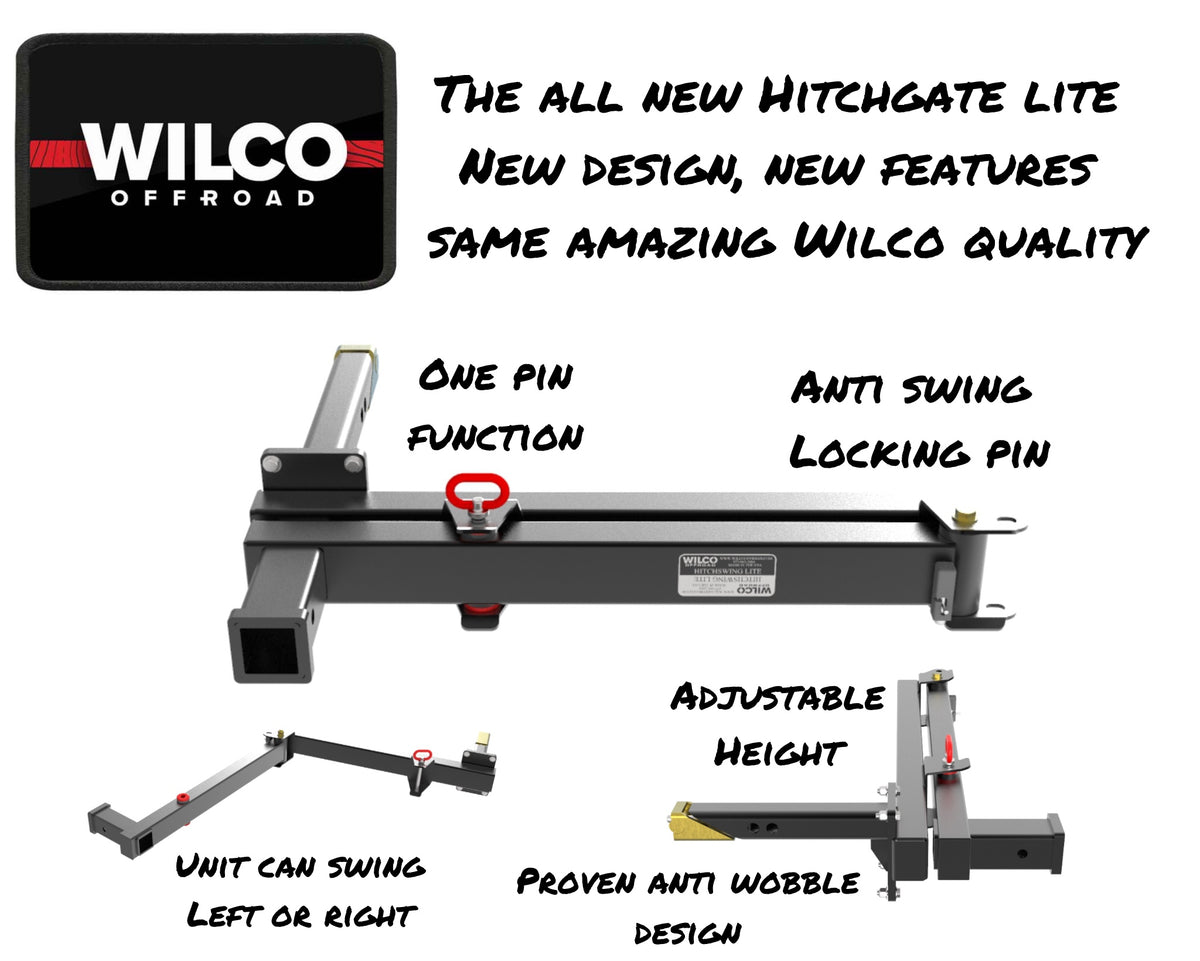

Reversable Mounting - Can be installed to either swing open to the passenger side or the driver side.

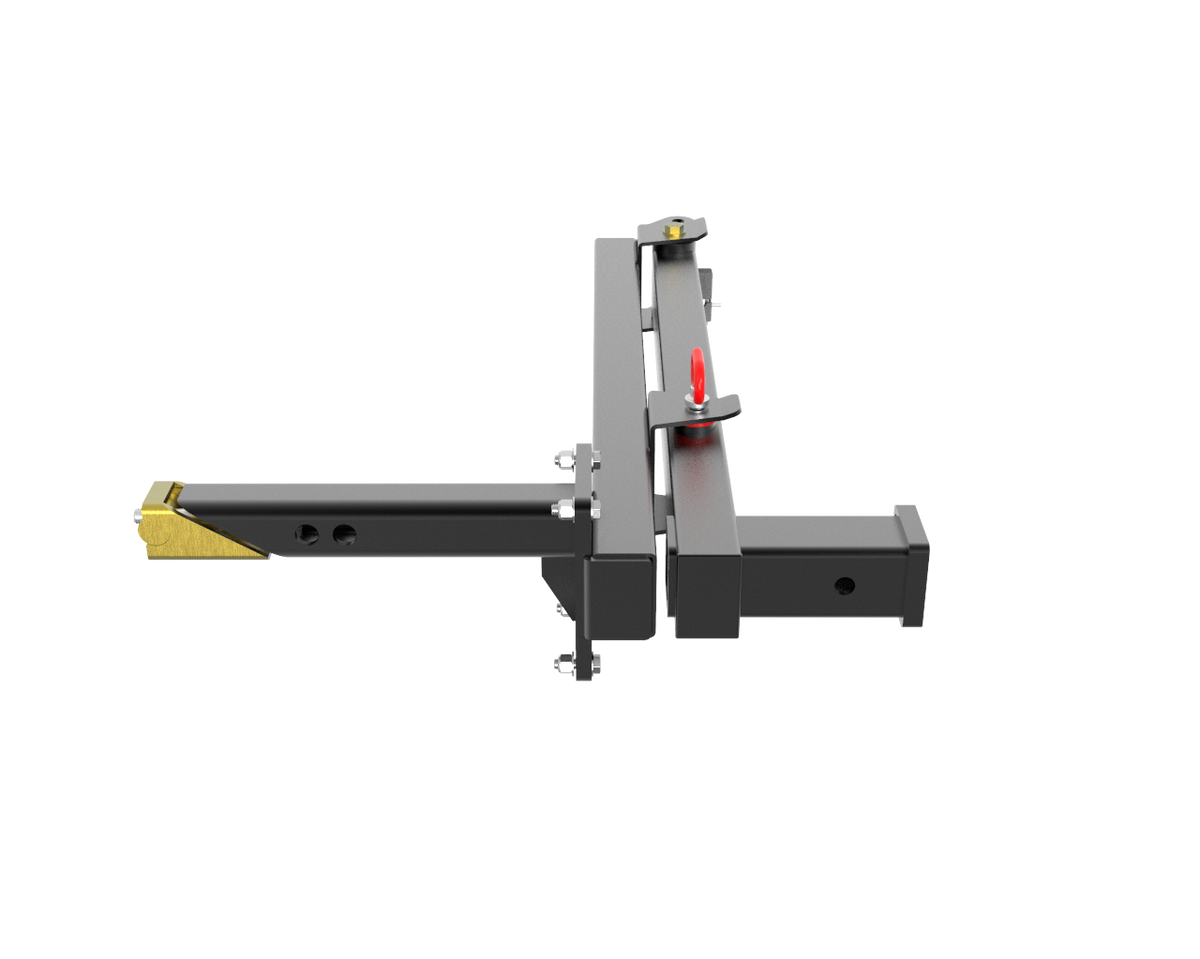

Height Adjustable - The hitch mounting bracket can be flipped for additional clearance.

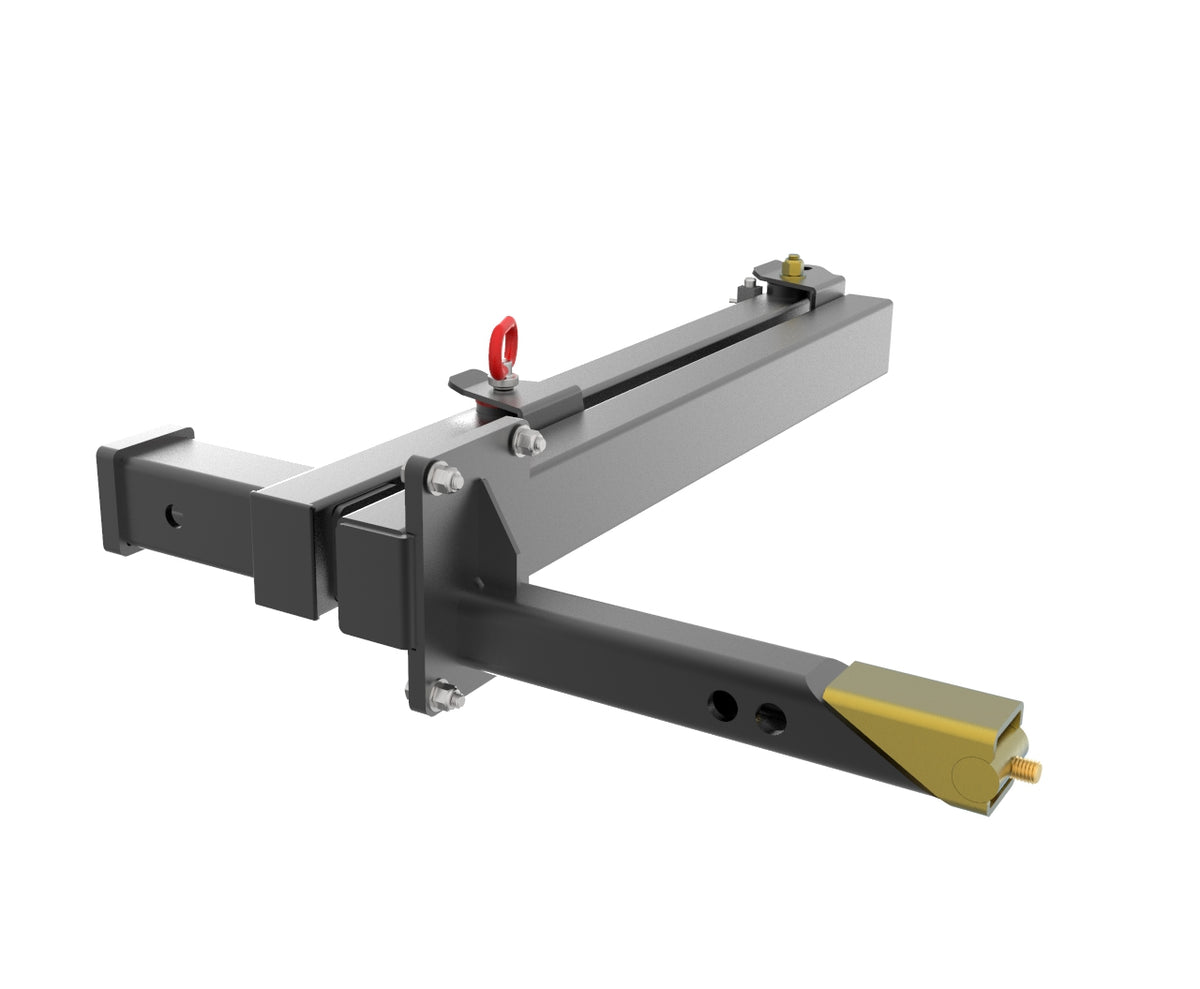

WedgeLock- Our WedgeLock will take all the wobble away. Once tightened, the Hitchgate X becomes part of the vehicle.

Pivot with Grade 8 bolt and Delrin washers- for serviceability, strength and smooth vibration free operation.

Latch Pin- Easy grip (even with gloves) is tethered to the base bar.

Polyurethane Latch Pin bushings- smooth fit and no vibration between arm and latch.

Arm capacity- 200 lbs.

Spring loaded locking pin – It will hold the swing arm in the open position.

Blasted and Powder Coated finish- to help protect against the elements.

Durable welded components- 20yrs of welding experience on display.

Warranty – Lifetime Structural Warranty and made in U.S.A. right here in Austin Texas.

**Hitch receiver locking pin NOT included

*Notice of maintenance required** - Periodic tightening of the pivot bolt with a torque wrench to at least 60-70lbs every few months is needed to prevent movement on the swing arm and add grease to the shaft of the bolt to prevent rust in snowy areas . Also, over time replacing the Delrin washers and T handle bushings if needed.

***Fitment Notes -

Identify that you have at least 4 ½” from your hitch pin hole towards the front of your vehicle. Doing so will ensure that the Hitchswing will be able to engage its wedge lock design eliminating any wobble or play in your receiver that you may have.

Factors that can result in the receiver tubing not fitting can be caused by:

  • Receiver tubing has a plate on the back end of the receiver that restricts the hitchswing tubing from running back enough for the wedge lock to have room to engage or hitch pin holes to align.
  • Some model vehicles have a muffler in the rear that interferes with how far back the tubing is allowed to run. This will require the muffler or exhaust components to be relocated.
  • You want to make sure the face of your hitch receiver is at least flush with the outer most edge of your rear bumper. Not Receded anymore than 2.0" behind your bumper.
  • Needs 3” of clearance from Hitch receiver to the bottom of rear door or tailgate* Swings out 180 Degrees*

**Notice of maintenance required** - Periodic tightening of the pivot bolt with a torque wrench to at least 60-70lbs every few months is needed to prevent movement on the swing arm. Also, over time replacing the Delrin washers and T handle bushings.

Wilco Offroad Product Warranty

Wilco Offroad (Wilco) warrants to the original Purchaser/Consumer of Wilco’s Products and applies only to Products which are defective in material or workmanship. Wilco will provide free of charge the replacement of any Products which are defective in material or workmanship (the “Warranty”). This Warranty applies only to the Purchaser/ Consumer of the Products.

Limitations & Exclusions: The Warranty applies only to Products which are defective in material or workmanship. This Warranty does not cover normal wear and tear. (1) Products that have been abused, crashed, altered, modified, or installed on vehicles other than those approved by Wilco Offroad (2) Cost of the original installation, removal, or reinstallation (3) Damages and shipping charges (4) Latch bushings, safety cable assembly, bolts, nuts, latch pins, cap plugs, tether cables/crimps, and thrust washers (These parts are subject to wear and are not considered defective when worn.

The Warranty does not cover service or labor charges which are incurred in removing or replacing any Products. The Warranty does not cover the finish placed on Products by Wilco including powder coating. Accordingly, Wilco will not replace, repair or refinish any Products if the finish on the Product is worn in any manner.

The Warranty does not extend to Products which are damaged or which fail as a result of the Product being abused, neglected, or misused in any manner, or as a result of any accident, overloading, improperly installed, or damage resulting from improper operation or maintenance or attempted repair by anyone other than an pre-authorized representative of Wilco or if altered in any manner by anyone other than Wilco .

Defective Products returned to Wilco become property of Wilco. If a Wilco Product is inspected by an authorized Wilco representative and is determined to be defective in materials or workmanship within the aforementioned time period and pursuant to the requirements set forth herein. Wilco will, in its sole and absolute discretion, do one of the following: a) Repair or replace without charge FOB it’s designated service center. b) Send a service team to the then current location of the Product to repair or replace it on site; or allow credit for the Product. All warranty claims MUST involve an inspection of the Product and be approved by an authorized Wilco representative, and all repair procedures must be pre-approved by Wilco before any repair work can begin. There are no exceptions to this procedure, so please contact Wilco Tech Support on-line at “info@wilcooffroad.com” immediately before attempting any repairs or modifications of your Wilco product. No claim for Products alleged to be defective will be allowed until Wilco has had a reasonable opportunity to investigate each claim. Obligations of Purchaser/Consumer: To obtain the benefits of the Warranty, the Purchaser/Consumer must complete the following steps: All claims are barred unless reported in writing by Purchaser/Consumer to Wilco with full particulars, promptly after the damage was or reasonably should have been discovered and full facilities are offered Wilco for inspection and investigation.

The Purchaser/Consumer must present the defective Product(s) together with proof of purchase to Wilco’s designated service center within the above warranty period. For the designated service center please contact your Wilco dealer, installer, retailer or online at “info@wilcooffroad.com”. The Purchaser/Consumer must pay all handling, transportation, and shipping charges incurred for the return of the defective Products to Wilco and for delivery of the replacement Products by Wilco to the Purchaser/Consumer.

This warranty is invalid if factory applied identification criteria have been altered or removed from the Product. Work performed by others must have the prior authorization of Wilco to be honored. Severability— Any legally or otherwise invalid provision hereof shall be considered severable. Any condition of exceptions which may be stated in any communication or document received by Wilco from any entity or individual, including but not limited to the Purchaser, shall be of no effect unless specifically agreed to in writing by Wilco. The current warranties and terms outlined on the Wilco Offroad website (www.wilcooffroad.com) on the date of the purchase shall take precedence over any other warranties whether verbal or written. Wilco reserves the right to alter its warranties from time to time, as the laws and company’s business needs and industry change.



Wilco Offroad Return Policy

30 Day No-Hassle Return Policy: You can return any new, unopened item within 30 business days of receipt of your item (based on tracking number and delivery date). Customer is responsible for all associated return shipping costs. A refund will be issued minus shipping charges and applicable restocking fees. Unopened packages will be charged a 10% restock fee and opened packages will be charged a 25% restock fee. Returned items must be in like-new condition. Items that have been installed, including mock-ups and test fits, onto a vehicle may not be accepted or incur a higher restocking fee. Any rework or reconditioning needed will be deducted from refund amount. Contact customer service for more accurate deductions. You must send the item(s) along with the Return Good Authorization number to Wilco Offroad to ensure a prompt refund. Items returned without a RGA(return good authorization) will be refused and returned to sender. Items older than 30 Days are not eligible for returns.

Missing Parts: If a return contains items that are damaged or missing, the customer will be charged to fix the damaged items) or charged to replace the missing item(s). Be sure to return all components of the shipment, including, but not limited to; nuts bolts, screws, washers, cables, etc. Also, take care that no components are damaged. Incomplete returns or damaged items will incur a charge. Also, items that have been altered in any way are non-refundable.

Sale/Closeout Items: Items purchased as a closeout, scratch-n-dent, sale, or display items are non-refundable.

—————– Please Read This Information Carefully —————–

Delivery: Please inspect all packages upon delivery ASAP. Any problems, such as damaged parts, shortages, etc, must be reported within 5 days of delivery. We can be reached 24 hours a day by emailing customer service at info@wilcooffroad.com. Reach us by phone Monday through Friday 9-5 PST.

Carrier Related Damage: Report ANY damages immediately to the carrier. Work with the carrier to file a claim and to pick up the damaged carton(s) with entire contents. (If you are present at delivery and the damage is severe and apparent right away, you may consider refusing delivery.) DO NOT ship contents back to Wilco Offroad directly. After a claim has been filed with carrier, contact Wilco Offroad for reshipment within 5 days of delivery. Non-Carrier Related Damage: Any damaged goods received which you suspect are not carrier related should be reported to Wilco Offroad within 5 days of delivery. A copy of your order should available when reported.

Fitment Issues: If you have a fitment issue, please contact Wilco Offroad first. Any modified products are nonrefundable.

RETURNS: • Return item(s) with RGA number marked on the outside of the box to the address listed on your RGA Invoice. • Returns must be made within 30 days after delivery of your order. • Return items in original container and packing material. • Returns after 30 days will NOT be accepted. • A copy of the original invoice and the RGA number must be sent with the returned merchandise. • Goods must be received complete in the original condition they were sent. • All returns must be shipped freight prepaid. WILCO reserves the right of final approval on all returns. For information on warranty periods, please consult the Wilco web site or your owner’s manual.
